To safely bypass a Fleck 5600SXT during a pool fill without damaging the resin bed, turn the bypass valve handles (or push-pull rod) to the full bypass position before opening the outdoor spigot, then slowly open the pool fill line so untreated water routes around the softener tank. The correct sequence is: (1) regenerate the unit the night before if salt is low, (2) shift both inlet and outlet bypass valves to bypass, (3) verify zero flow through the control head by watching the meter dial, and (4) open the pool hose gradually to avoid back-pressure spikes. This is exactly how to bypass Fleck 5600SXT pool fill safely, and it preserves the resin bed by preventing chlorine slugs, sudden flow surges, and channeling that occur when 8,000+ gallons rush through the media in a few hours.
Pool fills are the single most common cause of premature resin failure on Fleck 5600SXT units. A typical 15,000-gallon residential pool will exhaust a 1.5 cu ft resin bed many times over, blow through your salt reserve, and — if the home is on chlorinated municipal water — oxidize the resin beads into mush. This guide walks through the bypass procedure step-by-step, explains the three failure modes to avoid, and shows the sediment and carbon pre-filtration that protects the system year-round.
The best how to bypass fleck 5600sxt pool fill for your situation depends on how you plan to use it and where.
Why You Must Bypass the Fleck 5600SXT During a Pool Fill

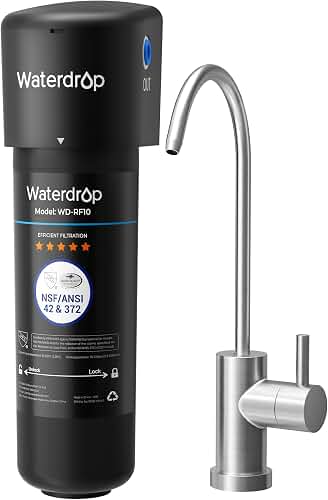

- Less than ＄25.99 per replacement filter WD-RF10(Search " B085G66JTZ "on Amazon), save over 50% of cost on subsequent use. It is specifically designed for municipal tap water and
- Innovative Multistage Filtration: The
- PATENTED DESIGN – The top-mounted fastener allows for easy countertop installation entirely from above, eliminating the hassle of tightening the nut from underneath the sink
- MINERAL BOOST – The patent-pending natural mineral AK stage delivers spring water with a balanced, healthy pH and multiple essential minerals
- [Easy DIY Compatibility] Designed for standard under-sink cold-water connections and municipal tap water. This under sink water filter system connects directly to most faucets
- [Easy Filter Replacement] Replacement filters are easy to find and install. For WD-TSA-UF/TSB-UF under sink water filtration system, search B0CM8MHWNT for WD-10PP, B0CM8KV1M9 for
- Universal Fit for Whole Home Water Filtration: 5 micron sediment filter 10 x 4.5 cartridge fits effortlessly into water filter housings with 4.5 inches diameter. This house water
- Extended Lifespan for Optimal Well Water Filtration: With a high-capacity design, 10 x 4.5 water filter provides up to 30% longer servicing than standard house water filters
- WHOLE HOUSE WATER FILTRATION: Notice the difference immediately with 3-stage water filtration process throughout your home. From every faucet enjoy crystal clear, drinkable, water
- COMPREHENSIVE FILTRATION SYSTEM: The ULTIMATE PROTECTION system was specifically designed to significantly reduce Chlorine, Heavy Metals (Lead, Arsenic, Chromium +More), and stop
- Whole house water filter that protect your family and household appliance from iron, manganese and more: Our 3rd stage iron water filter (FM25B) is specially designed for iron and
- DIY installation and maintenance - refer to our manual and our helpful YouTube videos for easy DIY installation. With 1 in. NPT inlet / outlet and 20 in. x 4.5 in. water filter
- 【 Improve Water Taste 】 – Sediment Filter and Carbon Block Filter reduce dirt, rust, sand, silt, and suspended solids, while treating bad odor, colored, or cloudy water
- 【 Remove Heavy Metals 】 – Compound GAC+KDF Filter reduces lead, mercury, arsenic, cadmium, chromium, chlorine, and other chemicals to ensure drinking water safety and protect skin
- Cleaner, Healthier Water from Every Tap in Your Home – Specially designed for well water. High-performance water filter system for great-tasting water, improved air quality
- Advanced Filtration Technology – Multi-stage filtration combines pre- and post-filters with carbon, KDF, UV, and salt-free Scale Control Media to reduce 97% of chlorine and tackle
Top Picks
Pre-Filtration That Protects the Resin Bed
The fastest way to extend resin life on a Fleck 5600SXT is a sediment + carbon pre-filter stage upstream of the bypass. Carbon strips chlorine before it reaches the bed; sediment catches the fines that cause channeling. Here are the systems that pair well with a 5600SXT for whole-house duty.
Comparison: Pre-Filter Options for Fleck 5600SXT
| System | Stages | Capacity | Best For |
|---|---|---|---|
| Express Water 3-Stage | Sediment + 2x Carbon | 100,000 gal | City water, chlorine removal |
| HQUA WF3-01 3-Stage | Sediment + KDF + Carbon | 100,000 gal | Mixed contaminants |
| Aquasana 500K Well | UV + Carbon + KDF | 500,000 gal | Well water with bacteria risk |
| iSpring Iron & Manganese | Oxidation + Filtration | Iron up to 3 ppm | Well water with iron staining |
| Aquaboon Sediment 4-Pack | 5-micron sediment only | Per-cartridge | Replacement cartridges |
The Fleck 5600SXT is rated for a continuous service flow of roughly 11 GPM and a peak of about 20 GPM on a 10-inch tank. A garden hose at 60 PSI moves 9-17 GPM depending on diameter, which means a sustained pool fill keeps the resin bed at or near peak flow for 8-24 hours straight. Three things go wrong when you skip the bypass:
- Resin oxidation — municipal chlorine concentrations of 1-4 ppm degrade standard 8% crosslink resin at roughly 1% capacity loss per ppm-year. A pool fill compresses a year of chlorine exposure into one weekend.
- Channeling — sustained high flow carves vertical channels through the resin, so future regenerations only refresh part of the bed.
- Salt exhaustion mid-fill — the meter triggers regeneration during the fill, and hard water mixes with brine, sending salty water straight into the pool.
Bypassing the unit avoids all three. The trade-off is that the pool gets hard, chlorinated municipal water — which is exactly what pool chemistry is designed for. Soft water in a pool actually leaches calcium from plaster and grout, so bypassing is the right call regardless of resin protection.
Step-by-Step Bypass Procedure
1. Identify Your Bypass Valve Type
Fleck 5600SXT units ship with one of three bypass styles:
- Fleck plastic 1" bypass — two red arrows or two blue handles; rotate both 90 degrees toward the tank.
- Noryl push-pull stem — a single brass-colored rod; push fully in for bypass, pull out for service.
- Third-party brass bypass (Clack-style, after-market) — three ball valves; close the middle (service) valve and open the outer (bypass) valve.
2. Pre-Fill Checklist
Run through this list 12-24 hours before the fill:
- Check salt level — top off to at least 1/2 tank so a delayed regen has brine ready.
- Manually trigger a regeneration the night before so the bed is fully refreshed when service resumes.
- Confirm bypass valve handles move freely — if they’re seized from years of disuse, work them with silicone grease, not WD-40.
- Replace any pre-filter cartridges so they’re not the bottleneck during the fill.
3. Engage the Bypass
With the softener in standby (no regeneration in progress), shift both inlet and outlet bypass handles to the bypass position. On the Fleck plastic bypass, the red arrows should point toward each other, away from the control head. Watch the LCD on the 5600SXT controller — the flow meter reading should drop to 0.0 GPM within 10 seconds even if a faucet is running. That zero reading is your confirmation that no water is moving through the resin tank.
4. Open the Pool Fill Slowly
Crack the outdoor spigot to about 25% for the first two minutes. A full-blast opening sends a pressure wave back through the manifold that can lift the upper basket inside the resin tank even when bypassed, because the bypass valve still shares a body with the riser tube ports. After two minutes, open fully.
5. Return to Service
When the pool is full, close the spigot first, then shift the bypass handles back to service slowly — over about 10 seconds — to avoid water-hammering the distributor basket. Trigger a manual regeneration to flush any debris that settled in the bed during the bypass period.
Express Water 3-Stage Whole House Water Filter System
The Express Water 3-Stage is the most common pre-filter pairing for a Fleck 5600SXT on city water. The first stage is a 5-micron sediment cartridge, followed by two carbon block stages that pull chlorine down below 0.1 ppm — well under the threshold that oxidizes standard resin. The pressure gauges on each housing let you see filter loading at a glance, which matters during pool-fill season when sediment can blind a cartridge in days. Install it upstream of the softener bypass valve so it filters even when you’re bypassing the softener for a pool fill. Express Water 3-Stage Whole House Water Filter System.
HQUA WF3-01 3-Stage Whole House Water Filtration System
HQUA’s WF3-01 is a close alternative with a KDF stage added between sediment and carbon. KDF-55 specifically targets free chlorine and heavy metals, and it shifts the chlorine reduction workload off the carbon block so the carbon lasts longer. If your municipal supply runs hot on chlorine (3-4 ppm, common in summer), this is the better choice for resin protection. View on Amazon.
Aquasana 500K Gallon Well Water Filter
If you’re on well water and using the pool fill, the contaminant load is completely different — bacteria, iron, manganese, sometimes hydrogen sulfide. The Aquasana 500K system stacks UV sterilization with a carbon and KDF tank, sized for half a million gallons of throughput. That’s about 8-10 years of household use plus seasonal pool fills before the carbon needs replacement. Position the Aquasana upstream of the softener, and the softener bypass becomes a simple seasonal toggle without contamination concerns. Aquasana Whole House Well Water Filter.
iSpring Iron & Manganese Whole House System
Iron is the silent killer of softener resin. Even 0.3 ppm of ferrous iron will foul a Fleck 5600SXT bed within two years, and a pool fill drags fresh iron-laden water through the media at high velocity. The iSpring system oxidizes dissolved iron into filterable particles, removes them, and hands clean water to the softener. If you’ve ever pulled the top of your resin tank and seen rust-colored beads, this is the fix. iSpring Whole House Water Filter System.
Aquaboon 5-Micron Sediment Cartridges (4-Pack)
Whatever pre-filter housing you run, you’ll burn through sediment cartridges faster during pool-fill season. The Aquaboon 4-pack of 10x4.5 cartridges fits standard Big Blue housings used by Express Water, HQUA, and most other 3-stage systems. Keeping a four-pack on the shelf means you can swap a clogged cartridge mid-fill without driving to a hardware store. Buy on Amazon.
Common Mistakes That Damage the Resin Bed
Bypassing Only the Outlet Valve
On the dual-handle Fleck bypass, both handles must move. Bypassing only the outlet routes water in through the control head, into the tank, and back out the bypass — the bed still sees full flow. Always confirm a 0.0 GPM reading on the LCD.
Letting Regeneration Run During a Pool Fill
If the bypass is engaged but the controller still triggers a timed regen at 2 AM, the unit will draw brine into an empty (no flow) tank and sit until you restore service. The brine can sit on resin for hours, which is fine, but the first flush of restored service pushes concentrated brine into your house plumbing. Either disable the regen schedule for the fill weekend (hold REGEN for 3 seconds to cancel a pending cycle) or set the bypass before bedtime and restore service before the scheduled regen time.
Closing the Bypass Too Fast on Return
A fast handle slam creates a back-pressure spike that lifts the upper basket and dumps resin into your service lines. Move the handles deliberately over 10 seconds. If you ever see resin beads in a faucet aerator, the basket has likely cracked.
Long-Term Resin Care Around Pool-Fill Season
Resin doesn’t fail from one pool fill — it fails from years of small insults that add up. A few habits keep a Fleck 5600SXT bed serviceable for 10-15 years:
- Add a resin cleaner (Iron Out or Pro Res Care) to the brine tank every 3 months.
- Replace sediment pre-filters on a calendar schedule, not by pressure-drop alone.
- Test hardness twice a year — a sudden jump in treated hardness signals channeling, not capacity loss.
- Keep salt above 1/3 tank year-round so brine concentration stays at 26%.
For deeper dives on related setup questions, see our guides on Fleck 5600SXT regeneration frequency settings, whether to install sediment filters before or after the softener, and well water iron removal before a softener.
Frequently Asked Questions
Can I leave the Fleck 5600SXT in bypass overnight during a pool fill?
Yes. Bypass mode is mechanically passive — water simply routes around the resin tank through the bypass body. There’s no time limit. The only consideration is that scheduled regenerations will still fire on the controller; cancel any pending regen by holding the REGEN button for three seconds, or unplug the controller for the duration of the fill.
Will bypassing the softener for a pool fill void my Fleck warranty?
No. The bypass valve is a standard part of the Fleck 5600SXT assembly and is designed for exactly this kind of use — servicing the unit, vacationing, and seasonal high-volume draws like pool fills or irrigation. The warranty covers manufacturing defects on the control head and tank, not resin life.
How long does it take to fill a pool while bypassing the Fleck 5600SXT?
Roughly the same as filling without the softener in the loop — about 12-18 hours for a 15,000-gallon pool at 14 GPM through a 5/8" garden hose. The bypass valve has slightly lower pressure drop than the full softener path, so you may gain 1-2 GPM versus running through the unit in service.
Should I add stabilizer to pool water before or after the fill if I have a softener?
After. The municipal water arriving through the bypass is already chlorinated and at typical city pH. Add cyanuric acid stabilizer, then balance pH and alkalinity 24 hours after the fill is complete and water has had time to equilibrate to ambient temperature.
Can I use a hot water spigot to fill the pool faster without going through the softener?
Not recommended. Hot water spigots almost always pull from after the softener since the water heater is typically downstream of the softener. You’d also blow through 50-80 gallons of water heater capacity in minutes and trigger a long recovery cycle. Stick with a cold outdoor hose bib upstream of the softener or use the bypass procedure above.
What pressure should I set on the Fleck 5600SXT after a pool fill?
The 5600SXT doesn’t have a user pressure setting — it operates at line pressure, typically 40-80 PSI. After restoring service, check your house pressure with a gauge on an outdoor spigot. If it reads above 80 PSI, install a pressure-reducing valve upstream of the softener; sustained high pressure is the second-most-common cause of resin tank failure after chlorine exposure.
Do I need to regenerate the Fleck 5600SXT after a pool fill if I bypassed it?
Not strictly required, but recommended. The bed has been sitting static for 12-24 hours, and any settled iron, manganese, or sediment in the upper portion of the resin will benefit from a backwash cycle. Hold the REGEN button for three seconds to start an immediate cycle once service is restored.
Key Takeaways
- Choosing the right how to bypass fleck 5600sxt pool fill means matching the key features to your specific needs and budget
- Read real customer reviews and check the return policy before you commit
- Also covers: fleck 5600sxt bypass valve pool
- Also covers: fleck 5600sxt protect resin pool refill
- Also covers: fleck 5600sxt high volume bypass
- Compare value across models — the priciest option is not always the best fit
